DHM25 basis model

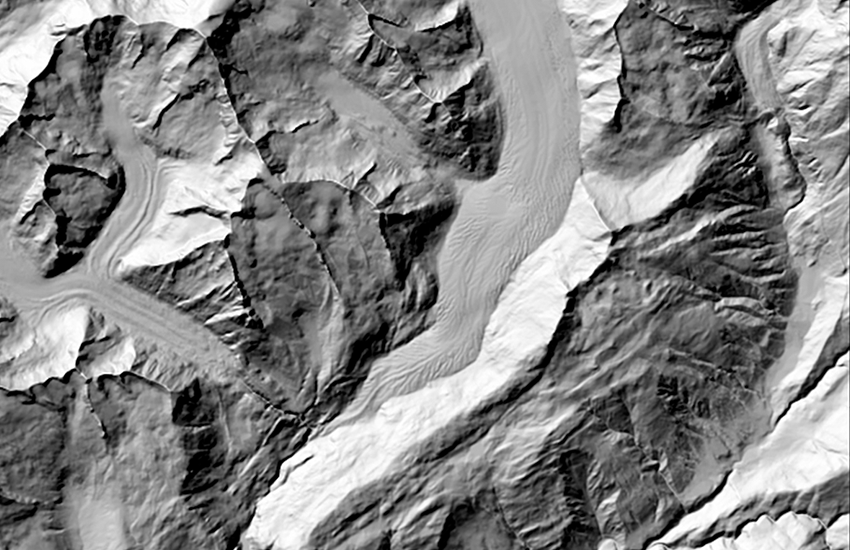

The digital height model DHM25 is a data set representing the three-dimensional form of the earth?s surface. It was derived from the height information of the Swiss National Map 1:25'000 and 1:50'000 -for the extended perimeter.The base model contains the following elements: linear elements: vectorized contours and contours in lakes, vectorized lake perimeters, primary breaklines; dot elements: digitized spot heights and depth spot heights in lakes. The DHM25 represents the topography of the earth's surface without vegetation or built up areas.
Simple
- Date (Revision)
- 2004-01-01T00:00:00
- Citation identifier
- 41.3
- Collective title
-
Höhendaten (Landesvermessung)
- Status
- Completed
- Point of contact
-
Organisation name Individual name Electronic mail address Role Federal Office of Topography swisstopo
Point of contact Federal Office of Topography swisstopo
Owner
- Maintenance and update frequency
- Irregular
- Maintenance note
-
The status of the DHM25 corresponds to that of the initial capture and digitization of the elements for the basis model except for glacial regions, which were updated in winter 2000/2001.
-
geocat.ch
-
-
contour in lakes
-
spot height
-
official geodata
-
topography
-
digital terrain model DTM
-
Conservation and archiving planning AAP - Confederation
-
isophysis
-
contour line
-
geodata
-
terrain representation
-
DEM (digital elevation model)
-
hillshade
-
GIS (Geographic Information System)
-
3D visualisation
-
opendata.swiss
-
-
GEMET - INSPIRE themes, version 1.0
-
-
Elevation
-
-
GEMET
-
-
relief (land)
-
- Other constraints
-
NonCommercialAllowed-CommercialAllowed-ReferenceRequired
- Spatial representation type
- Vector
- Denominator
- 25000
- Language
- Deutsch
- Character set
- UTF8
- Topic category
-
- Elevation
Extent
- Description
-
DHM25
![thumbnail](https://inspire-geoportal.ec.europa.eu/srv/api/regions/geom.png?geomsrs=EPSG:4326&geom=POLYGON((10.9209148915328%2045.8026783822663,10.9209148915328%2047.866161858363,5.86724980477195%2047.866161858363,5.86724980477195%2045.8026783822663,10.9209148915328%2045.8026783822663)))
![thumbnail](https://inspire-geoportal.ec.europa.eu/srv/api/records/3fab2ac3-4271-46b2-823e-ab4814c59d36/extents/3.png)
- Geographic identifier
- DHM25
- Supplemental Information
-
Due to technical reasons only the index contours (100 m) of the NM25 are digitized in steep terrain. In overhanging cliffs the other contours are omitted.
- Reference system identifier
- EPSG:21781
- Reference system identifier
- EPSG:5728
- Topology level
- Topology 1D
- Geometric object type
- Curve
- Geometric object count
- 525087
- Geometric object type
- Point
- Geometric object count
- 209505
- Distribution format
-
Name Version DXF
14
ESRI Shapefile
-
- OnLine resource
-
Protocol Linkage Name WWW:LINK
https://www.swisstopo.admin.ch/de/geodata/height/dhm25.html MNT25
CHTOPO:specialised-geoportal
https://map.geo.admin.ch/?topic=swisstopo&lang=de&bgLayer=ch.swisstopo.pixelkarte-farbe map.geo.admin.ch
WWW:DOWNLOAD-URL
https://www.swisstopo.admin.ch/de/geodata/height/dhm25.html OPENDATA:SWISS
https://opendata.swiss/de/perma/3fab2ac3-4271-46b2-823e-ab4814c59d36@bundesamt-fur-landestopografie-swisstopo Permalink opendata.swiss
- Hierarchy level
- Dataset
- Statement
-
derived from the elevation information of the National map 1:25'000, of the National map 1:50'000 for the extended perimeter.
- Compliance code
- Language
- Deutsch
- Language
- Français
- Included with dataset
- Date (Revision)
- 2004-06-01
Metadata
- File identifier
- 3fab2ac3-4271-46b2-823e-ab4814c59d36 XML
- Metadata language
- Deutsch
- Character set
- UTF8
- Hierarchy level
- Dataset
- Date stamp
- 2022-04-05T09:40:23
- Metadata standard name
-
GM03 2+
- Metadata author
-
Organisation name Individual name Electronic mail address Role Federal Office of Topography swisstopo
Point of contact
- Other language
-
Language Character encoding French UTF8 Italian UTF8 English UTF8 German UTF8
