Tectonic Map of Switzerland 1:500000

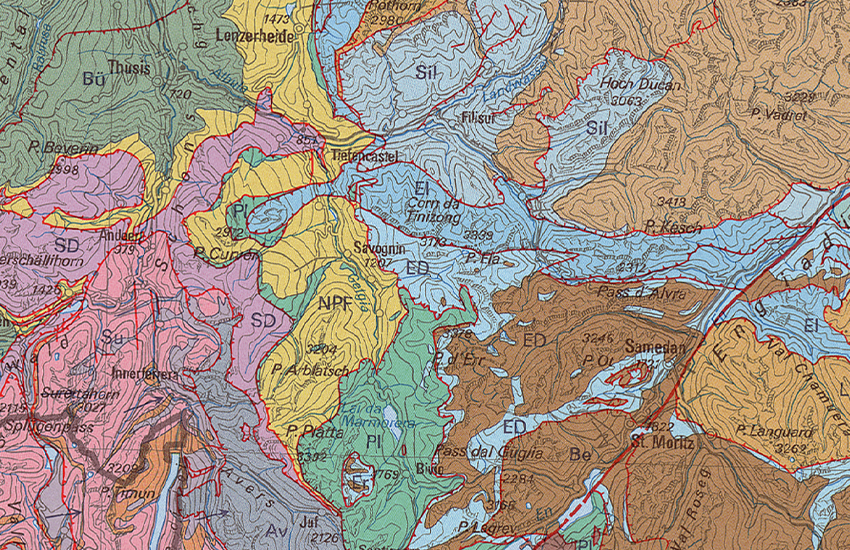

The Tectonic Map of Switzerland (TK500) depicts the tectonic units and structural elements of the entire Swiss territory and neighboring regions. These units group together rocks with a common geodynamic history and are separated from one another by tectonic discontinuities. Within some units, a distinction has been made between crystalline basement and one or more successive series of sedimentary cover. Units are grouped into structural domains separated by major tectonic discontinuities. Units and subunits can be located by entering their name in the search field, like some structural lines (not all have names). The current map (4th edition, 2024) is accompanied by an <a href=" https://www.geocat.ch/geonetwork/srv/api/records/a4cdef47-505e-41ab-b6a7-ad5b92d80e41/attachments/TK500-ERL.pdf?approved=true" target="_blank">explanatory note</a> providing a brief definition of each unit. A first enclosure contains three NW–SE to N–S <a href=" https://www.geocat.ch/geonetwork/srv/api/records/a4cdef47-505e-41ab-b6a7-ad5b92d80e41/attachments/TK500_Plate-II_Profile.pdf?approved=true" target="_blank">tectonic cross-sections</a> through the entire map area, which also show the major structures at depth. A second enclosure contains a series of <a href=" https://www.geocat.ch/geonetwork/srv/api/records/a4cdef47-505e-41ab-b6a7-ad5b92d80e41/attachments/TK500_Plate-III_Paleogeography.pdf?approved=true" target="_blank">paleogeographic diagrams</a>, from the Middle Jurassic (170 Ma) to the present day, showing the evolution of spatial relationships between the different tectonic domains covered by the map.
Simple
- Alternate title
-
Tectonics 500
- Date (Publication)
- 2005-12-31
- Date (Creation)
- 1980-01-01T00:00:00
- Date (Revision)
- 2024-05-01
- Citation identifier
- ch.swisstopo.geologie-tektonische_karte
Citation identifier
- Presentation form
- Hardcopy map
- Presentation form
- Digital map
- Name
-
GeoMaps 500
- Collective title
-
Geological maps
- Purpose
-
Übersicht über die Tektonik der Schweiz
- Status
- Completed
- Point of contact
-
Organisation name Individual name Electronic mail address Role Federal Office of Topography swisstopo
Distributor Federal Office of Topography swisstopo
Point of contact Federal Office of Topography swisstopo
Owner
- Maintenance and update frequency
- As needed
-
geocat.ch
-
-
Conservation and archiving planning AAP - Confederation
-
-
geocat.ch
-
-
geologic map
-
-
geocat.ch
-
-
opendata.swiss
-
-
geocat.ch
-
-
e-geo.ch
-
-
geocat.ch
-
-
official geodata
-
-
GEMET
-
-
tectonics
-
-
GEMET
-
-
earth science
-
-
GEMET
-
-
mountain range
-
-
geocat.ch
-
-
fault
-
-
GEMET
-
-
fault
-
-
GEMET - INSPIRE themes, version 1.0
-
-
Geology
-
-
geocat.ch
-
-
FSDI Federal Spatial Data Infrastructure
-
- Spatial representation type
- Grid
- Spatial representation type
- Vector
- Spatial representation type
- paperMap
- Denominator
- 500000
- Language
- Deutsch
- Language
- Français
- Character set
- UTF8
- Topic category
-
- Geoscientific information
Extent
- Description
-
National Map 1:500'000
))
- Geographic identifier
- NM500
- Supplemental Information
- Ce produit fait partie de la série des GéoCartes 500. Il est disponible en version imprimée (plié ou plano), carte-pixel et jeux de données vectorielles. Dieses Produkt ist Bestandteil der Serie der Geokarten 500 und ist als Druckversion (gefalzt oder plano), Pixelkarte oder Vektordatensatz erhältlich.
- Reference system identifier
- CH1903
- Distribution format
-
Name Version analog
-
GeoTIFF (GEOTIFF)
ESRI Shapefile (SHP)
- OnLine resource
-
Protocol Linkage Name MAP:Preview
https://map.geo.admin.ch/?layers=ch.swisstopo.geologie-tektonische_karte Preview map.geo.admin.ch
OGC:WMS
https://wms.geo.admin.ch/?SERVICE=WMS&VERSION=1.3.0&REQUEST=GetCapabilities&lang=de ch.swisstopo.geologie-tektonische_karte
OGC:WMTS
https://wmts.geo.admin.ch/EPSG/3857/1.0.0/WMTSCapabilities.xml?lang=de ch.swisstopo.geologie-tektonische_karte
- OnLine resource
-
Protocol Linkage Name WWW:LINK
https://www.swisstopo.admin.ch/de/geokarten-500 WWW:DOWNLOAD-URL
https://www.swisstopo.admin.ch/de/geokarten-500 CHTOPO:specialised-geoportal
https://viewer.swissgeol.ch/?lon=5.71256&lat=43.93404&elevation=204285&heading=26&pitch=-33&map=ch.swisstopo.pixelkarte-grau&map_transparency=0.00&layers=ch.swisstopo.geologie-tektonische_karte&layers_visibility=true&layers_transparency=0.30&layers_timestamp=current WWW:LINK
https://www.swisstopo.admin.ch/de/grundlagedaten WWW:LINK
https://www.geologieportal.ch/de/themen/grundlagen-der-geologie/tektonik-strukturgeologie.html ESRI:REST
https://api3.geo.admin.ch/rest/services/api/MapServer/ch.swisstopo.geologie-tektonische_karte RESTful API from geo.admin.ch
OPENDATA:SWISS
https://opendata.swiss/de/perma/a4cdef47-505e-41ab-b6a7-ad5b92d80e41@bundesamt-fur-landestopografie-swisstopo Permalink opendata.swiss
Metadata
- File identifier
- a4cdef47-505e-41ab-b6a7-ad5b92d80e41 XML
- Metadata language
- Deutsch
- Character set
- UTF8
- Hierarchy level
- Dataset
- Date stamp
- 2024-07-05T10:42:36.594Z
- Metadata standard name
-
GM03 2+
- Metadata author
-
Organisation name Individual name Electronic mail address Role Federal Office of Topography swisstopo
Point of contact
- Other language
-
Language Character encoding French UTF8 Italian UTF8 English UTF8 Romansh UTF8 German UTF8
